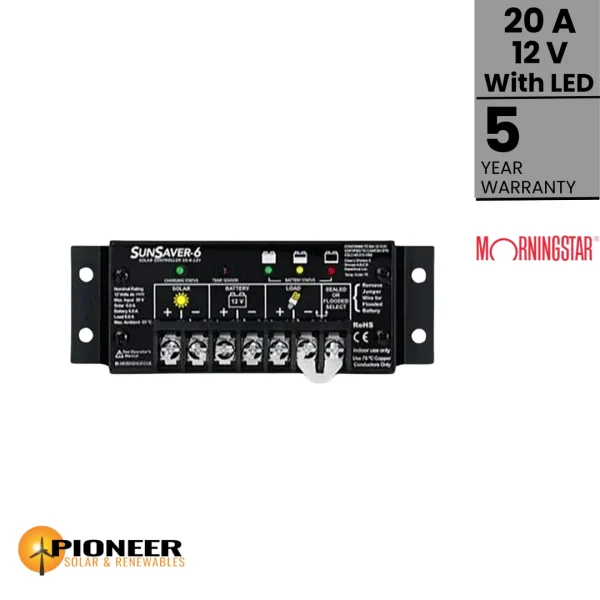

Morningstar 20A 12V SunSaver PWM Charge Controller with LED Indicator
$214.20
Stock: Call
Efficient solar charging for 12V systems with LED status indicator.
Canada Wide Shipping
Orders ship in 1-2 days
Pickup from nearest warehouse
24/7 Customer support
Secure transaction
- Description
- Additional information
- Reviews (0)
- Features
- Technical Specs
- Documents
- Warranty
Description
Description
Introducing the Morningstar 20A 12V SunSaver PWM Charge Controller with LED Indicator: This controller is designed to efficiently manage solar charging for 12V systems. With a 20A capacity, it ensures optimal battery charging while its LED indicator provides clear status updates. The controller’s advanced PWM technology delivers four-stage charging and temperature compensation, extending battery life. Manufactured with a focus on reliability, it boasts a failure rate of less than 0.1% and undergoes extensive pre-shipment testing in ISO 9001 facilities. Its series design promotes cooler operation, contributing to longer battery lifespan. Approved for use in harsh environments, it withstands temperatures ranging from -40°C to +60°C and is suitable for oil/gas applications. With its rugged construction and reliable performance, the Morningstar 20A 12V SunSaver PWM Charge Controller is ideal for various off-grid solar applications.
Additional information
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6 × 2.2 × 1.3 in |
| Brand | Morningstar |
Reviews (0)
Be the first to review “Morningstar 20A 12V SunSaver PWM Charge Controller with LED Indicator”
Features
- Exceptional reliability with a failure rate of less than 0.1%.
- Utilizes 100% solid-state Power MOSFET design.
- Manufactured in an ISO 9001 facility with extensive pre-shipment testing.
- Series design for cool operation and longer battery life.
- Implements PWM 4-stage charging and temperature compensation for extended battery life.
- Compatible with sealed or flooded battery types.
- Offers low voltage load disconnect on select versions.
- Designed for harsh environments with a temperature range of -40°C to +60°C, approved for hazardous locations: Class 1, Division 2, Groups A-D.
Technical Specs
Manufacturer Part Number: SS-20L-12V
Manufacturer: Morningstar
Current: 20A
Battery Voltage: 12V
Shipping Weight: 0.5 lb
Shipping dimensions: 6.0 x 2.2 x 1.3 in
Documents
5023 – Morningstar 20A 12V SunSaver PWM Charge Controller with LED Indicator Data Sheet
5023 – Morningstar 20A 12V SunSaver PWM Charge Controller with LED Indicator Installation Manual
5023 – Morningstar 20A 12V SunSaver PWM Charge Controller with LED Indicator Warranty
Warranty
Morningstar 20A 12V SunSaver PWM Charge Controller with LED Indicator – comes with a 5-year limited warranty
