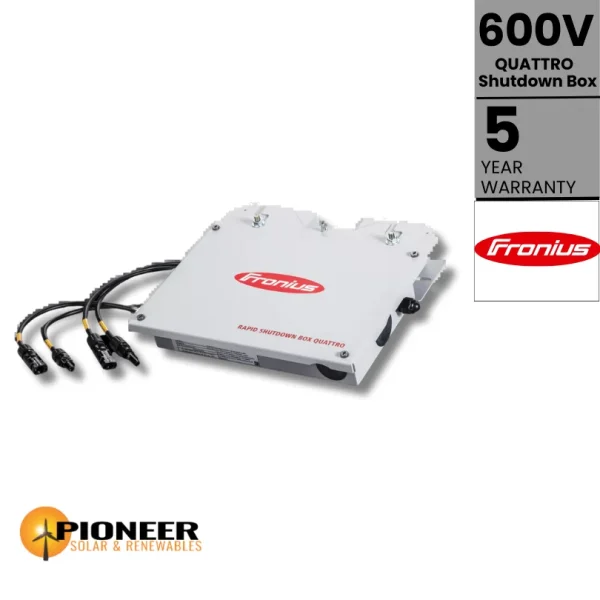

Fronius QUATTRO 4-Channel Rapid Shutdown Solution
$609.00
Stock: Available
Features multiple connectors for seamless integration into solar setups.
Canada Wide Shipping
Orders ship in 1-2 days
Pickup from nearest warehouse
24/7 Customer support
Secure transaction
- Description
- Additional information
- Reviews (3)
- Features
- Technical Specs
- Documents
- Warranty
Description
Description
In the world of solar energy, Fronius stands out as a beacon of quality and innovation. Their Rapid Shutdown Box QUATTRO is a testament to their commitment to the North American market’s stringent safety standards. Built to promptly disable PV generators, this device offers not just compliance with the NEC regulations, but also a synergy of functionality and ease of installation.
Fronius Rapid Shutdown Box QUATTRO
Elevate the safety and efficiency of your solar system with the Fronius Rapid Shutdown Box QUATTRO. Infused with Fronius’ cutting-edge technology and commitment to quality, it is the quintessential addition to any solar setup keen on blending functionality with uncompromised safety. Choose Fronius, where innovation meets reliability.
Additional information
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 14 × 12 × 6 in |
Reviews (3)
3 reviews for Fronius QUATTRO 4-Channel Rapid Shutdown Solution
Add a review
Features
- Tailored for North America: Explicitly designed to meet the demands and safety standards of the North American market, ensuring compliance with NEC 2014 (690.12) and NEC 2017 (Array Disconnect).
- Versatility: Compatible with all North American SnapINverters, accommodating a maximum system voltage of up to 600 V.
- Streamlined Installation: The box connects directly to the inverter and is strategically crafted to mount conveniently beneath the module. This direct connection eliminates the need for additional components or a separate power supply.
- Safety First: A reliable, immediate solution for deactivating PV generators in emergencies, thus enhancing the safety profile of your solar installation.
- Cost-Efficient: By simplifying the installation process and doing away with superfluous components, the Fronius Rapid Shutdown Box QUATTRO also aids in significant system cost reduction.
Technical Specs
Manufacturer Part Number: 4240154
Maker: Fronius
Maximum Voltage: 600 VDC
Start Voltage: 80 VDC
Maximum input current: 25A/ 25A
Input Circuits- MC-4: 2(4 if used with MC-4 Y connectors)
Max. output current: 25A/ 25A
Max. DC homerun wire size: AWG 8
Max. communication wire size: AWG 14
Number of conduit ports: 2
Conduit size: 3/4in. and 1in.
For use with Amphenol H4/other connectors: Remove MC-4 connectors and replace with UL listed connectors
Permissible operating temperature range: -40F to +149F (-40C to +65C)
Rel. humidity: 0 … 100% (non condensing)
Maximum installation elevation: 13123 ft (4000m)
Enclosure Type: Type 4X
Unit dimensions: 13.8 x 11.5 x 2.8 inch (351 x 293 x 71.5 mm)
Unit weight: 6 lbs. (2.7 kg)
Compliance: UL1741; LTR AE-004-2015; FCC 15 Class B
Compatible inverters: Fronius Galvo, Fronius Primo, Fronius Symo (excluding the Fronius Symo 15.0-3 208) up to 600V
Documents
Fronius QUATTRO 4-Channel Rapid Shutdown Solution Instruction Manual
Fronius QUATTRO 4-Channel Rapid Shutdown Solution Specification Sheet
Warranty
The Fronius QUATTRO 4-Channel Rapid Shutdown Solution – comes with a 5-year limited warranty against defects in materials and workmanship that begins on the initial purchase date or date of receipt of the product by the end user.
Extend your Fronius warranty through your installer within 30 months of factory shipment, coverage lasting up to 10 years.
